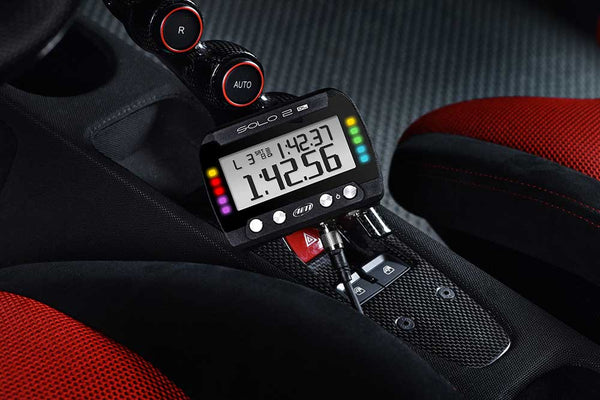

AIM Dash Logger - SOLO 2 DL GPS Lap Timer with ECU Connection

Regular price $799.00

AIM Dash Logger - SOLO 2 DL GPS Lap Timer with ECU Connection

The most precise and easy way to get lap times, The Solo with ECU Connection.

** The Solo 2 DL is available in 3 different connection versions: **
Solo 2 DL OBD -
Connects to ECU via OBD2 Port with OBD Cable
Solo 2 DL CAN - Connects to ECU via CAN/RS232 Connection that is hard-wired into CAN/RS232 Communication channels.
Solo 2 DL RPM - This connection is for vehicles that cannot pull data or do not have the ability to connect to their OBD Connection, this Solo 2 version has a coil RPM input to be able to log vehicle RPM's to better analyze a vehicle's performance.

The new Solo 2 receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version.
The power ON requires only a few seconds and the lap times are calculated with a max 2/100 sec of tolerance.

More than 1,000 protocols for 1,000+ ECU in the database, to easily connect your Solo 2 DL to your Engine Control Unit and get a lot of information with just one cable.
In case your ECU protocol is not in the database, no problem: an ECU Driver Builder is always available in the Race Studio 3 configuration software, and you will be able to create your protocol by yourself.

Coil RPM input

Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V each signal)
or pulse signals (150-450 V ignition coil trigger – primary circuit).

Find your track easily and quickly

Solo 2 can rely on a database of more than 3,000 tracks all over the world: as soon as it switches on, Solo 2 identifies its position, recognizes the starting line coordinates of the track and starts sampling lap times.

In case the track is not in the database, no problem: Solo 2 realizes it and enters into the autolearning mode, automatically understands the characteristics of the track and gives the lap time anyway.

Even the predictive lap time is much more reliable, and the configurable RGB LEDs will give you a clear and fast indication
of the comparison with your best lap.

Race mode selection:

  • Solo 2 can manage different types of races:
  • Speed races in a closed circuit\
  • Point to-point races
  • Regularity
  • Performance tests (0-100 km/h etc.)

In each of these configurations, Solo 2 gives the proper information during the test and powerful data review immediately after each session.

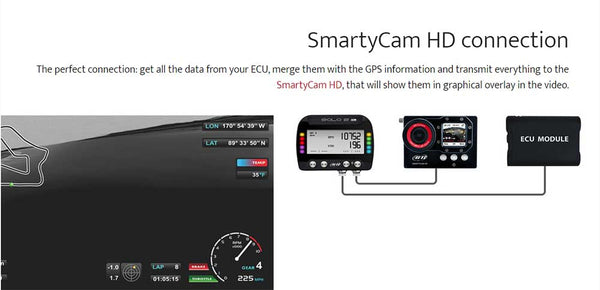

SmartyCam HD connection

The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.

Data Recall on Screen

At the end of your test, you can quickly review all the key information on your display.

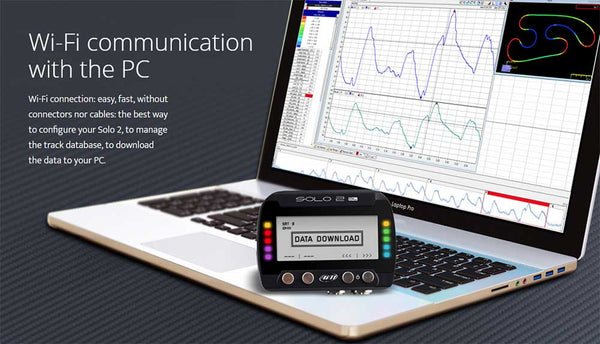

Wi-Fi communication with the PC

Wi-Fi connection: easy, fast, without connectors nor cables: the best way to configure your Solo 2, to manage the track database, to download the data to your PC.

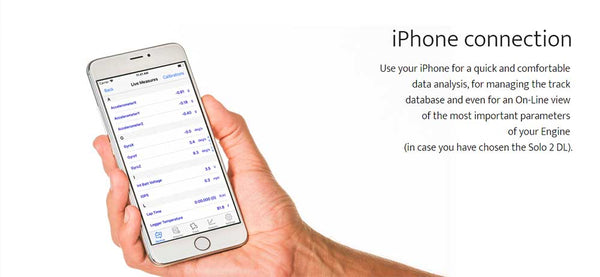

iPhone connection

Use your iPhone for a quick and comfortable data analysis, for managing the track database and even for an On-Line view
of the most important parameters of your Engine (in case you have chosen the Solo 2 DL).

Technical Specifications

Display :   Graphical
Display Resolution : 128 x 64 pixels
Display Pages : Up to 8 freely configurable
Backlight : 7 configurable RGB colors
Shift lights/alarm LEDs : 10 configurable RGB LEDs
Integrated track database : Yes
Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
WiFi connection : Yes
GPS : 10 Hz
ECU connection : CAN, RS232 or K-line to 1,000+ industry leading ECUs
External power : 12 V
Connectors : 1 socket (binder) 712, 5-pins ; 1 socket (binder) 712, 8 pins
Memory : 4 Gb
Battery type : Rechargeable lithium
Pushbuttons : Metallic
Dimensions : 98.0 x 73.7 x 30.2 mm
Weight : 240 g, battery included
Waterproof : IP67
