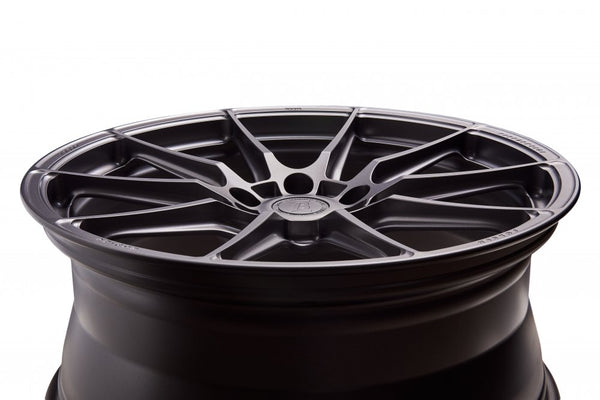

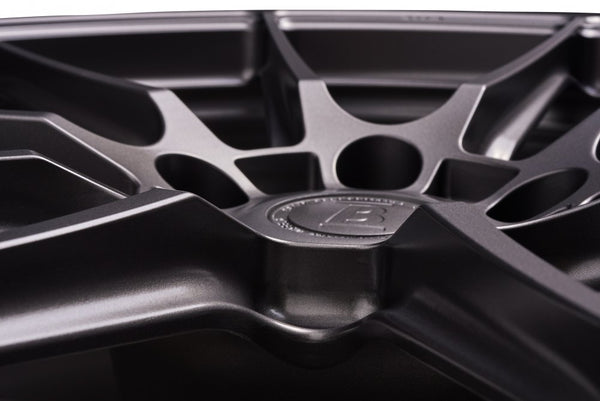

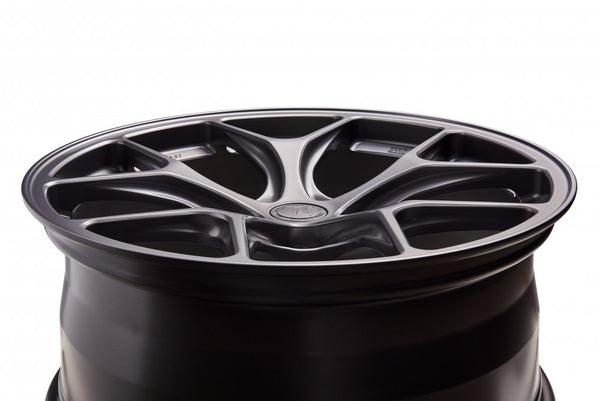

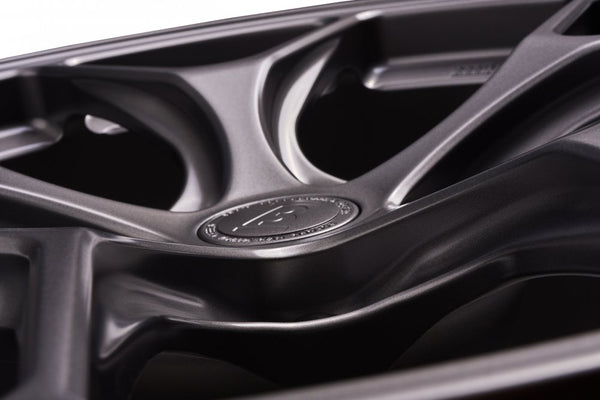

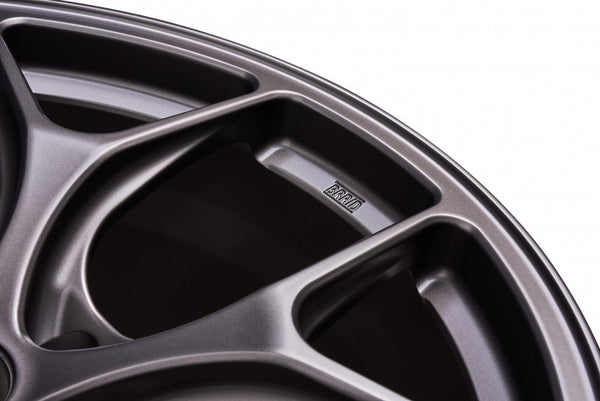

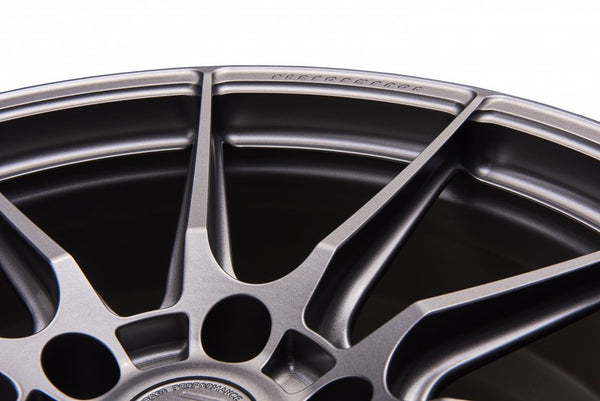

Braid Performance Forged Wheels
100% forged aerospace grade aluminum wheel manufactured using a 10.000 Ton press
Optimized design for maximizing the stiffness and reducing the inertia
High performance motorsport inner rim profile for big brake packages
Steel inserts on the bolt/nut seats
No centering ring required (direct hub centering)

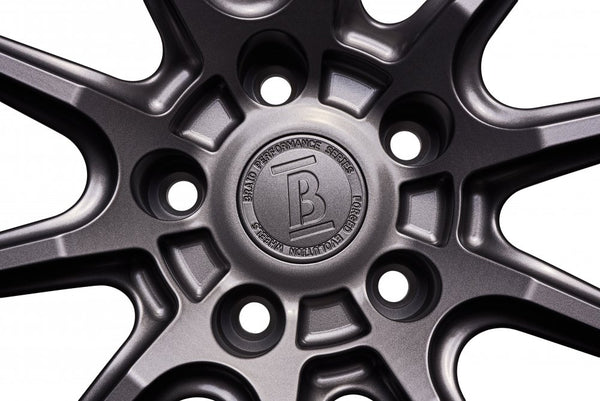

Milled performance center cap
Fitment for all Lotus Evora Cars 2010+
Evora 430/GT Spec
Front: 19x8.5" Offset +55 Recommend tire size: 245/35r19
Rear: 20x10.5" Offset +69 Recommend tire size: 295/30r20
5X114.3 Lug Spacing, 68.1mm Hub Bore
These are the same sizing and specs as the wheels that come stock on the Evora 430 and GT. These are about the most aggressive fitment and tire size that we recommend. Other offsets and sizing is done at your own risk
Evora 400 Spec
Front: 19x8.0" Offset +55 Recommend tire size: 235/35r19
Rear: 20x9.5" Offset +69 Recommend tire size: 285/30r20
These are the same sizing and specs as the wheels that come stock on the Evora 400, 410 and some 430's.
Different sizes and offsets available at an extra cost - Please email us for a quote!

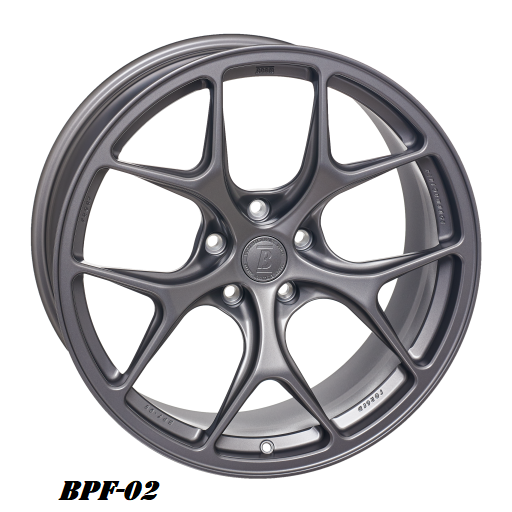

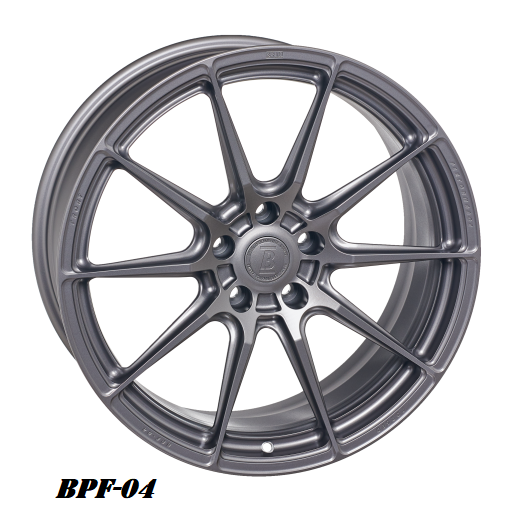

Choose one of the two design choices!
Approx wheel weights:
Front - 21lbs
Rear - 24lbs
These weights can vary slightly.
On top of every BRAID wheel produced is an unsurpassed level of finishing and painting quality.
BRAID offer a series of solid colors as standard options.
Solid colors vary in shade and smoothness, and includes shiny, satin and matte finish.
Due to the difference between different monitors, the picture may not reflect the actual color of the wheels.
We can paint wheels in any and unique color scheme, provided that the customer sends us the RAL code number, along with the finish touch (shiny, satin and matte) that he wants to achieve.
Price is for a set of four wheels in a standard color.
Custom colors and sizes may incur an extra charge.
Production time is typically 3-4 weeks but can vary depending on work load.
Other offsets and sizing is done at your own risk
Wheels are non returnable or cancellable once ordered.
